Description
Inkjet V5 Compact prints for cardboard, plastic, metal and EPS.

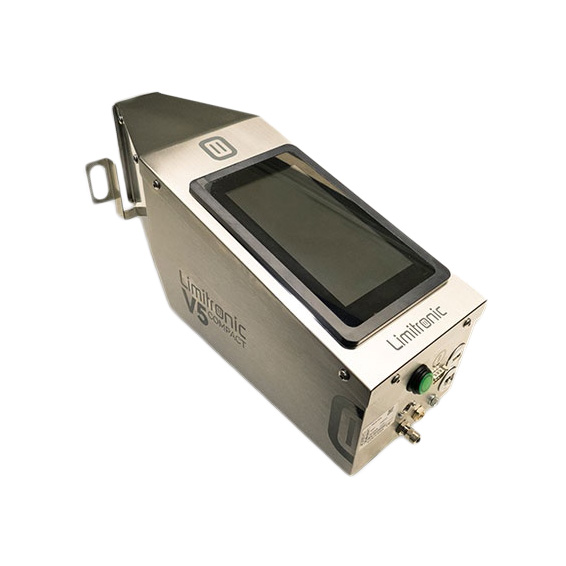

V5 Compact is a compact monoblock industrial printer with high performance and reduced price. Digital printing for Industry 4.0.
FEATURES:
- Native resolution 180 dpi
- Multiple densities and contrasts
- High-quality barcode printing. Standard GS-1
- Intuitive user interface
- Screen print layout preview (WYSIWYG)
- Oil and UV LED ink
- Select external message via hardware
- Limitronic driver for NiceLabel
PRINTABLE MATERIALS:
- Cardboard
- glossy paper
- art paper
- paper
- Substances
- wood
- plastic
- metal
- nylon
- EPS and more
BENEFITS:
- Personalization. Short runs. Promotions
- Pre-printed box inventory reduction
- Virtually zero maintenance
- No interruptions when adding supplies
SPECIFICATION:
- Print:
- Print head resolution: 180 dpi
- Print speed: 30 m/min at 180 dpi, 0.2 – 96 m /min according to resolution
- height: 72 mm
- Maximum length: 1100 mm
- Density: 3 levels
- Font type: True Type™, Open Type™ fonts</ li>
- Character encoding: Unicode
- Barcodes: Standard GS-1, EAN/UPC, ITF-14, GS1 -128, GS1 Datamatrix, GS1 QR Code
- Print in different fields: User (custom fields) and automatic, based fields (dates validity, change codes, counters)
- Orientation: Vertical (product side)
- Limitronic driver for NiceLabel
- Electronics:
- Power: Auto range, 88-264 V AC / 47-63 Hz, 108 W (max)
- Input: 2 x printer signals, 1 x encoder, 5 x programmable electronics (external message selection)
- output: 2 x programmable electronics
- Communication ports: 1 x RS-232, 1 x Ethernet 10/100, 1 x USB, 1 x WiFi
- Other:
- Environmental Working environment: 5 – 40 ºC (41 – 104 ºF)</span >
- Protection: IP 50
- User interface: Touch screen, color, 7”, Message selection with WYSIWYG preview , Diagnostics
- Communication: Individual communication protocol, Windows™ driver, Remote assistance
- Weight: 4.5 kg
- Ink: Oil-based ink, UV LED ink</li >
- Colors: Black, Black (high contrast), Cyan, Magenta, Yellow, Other (based on consultation)
