Description

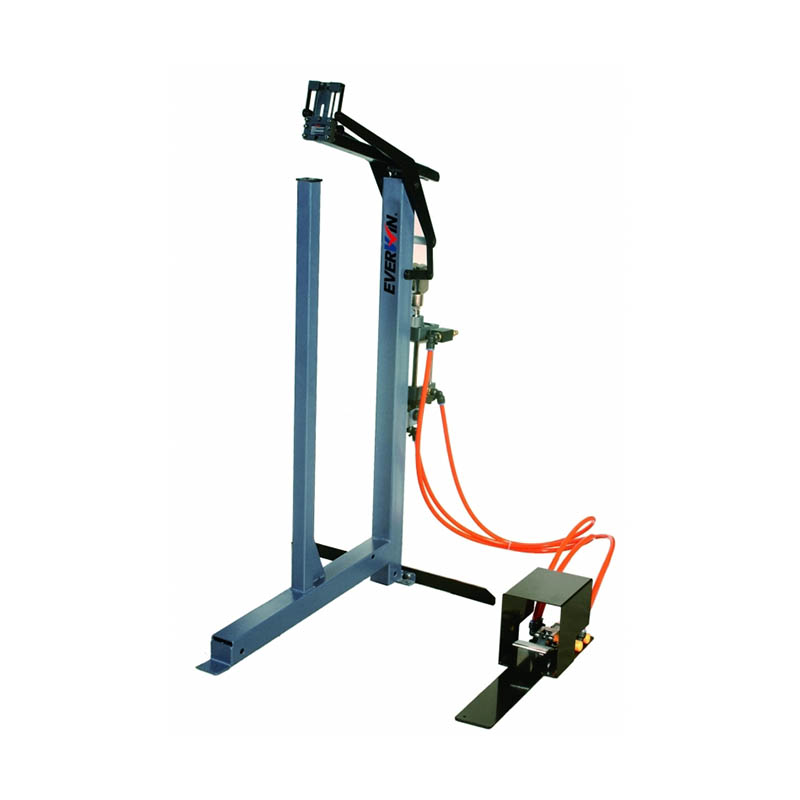

PNEUMATIC / MECHANICAL BOTTOM STAPLER
Compact stapler with matrix – pliers from the smallest performance range. It is intended primarily for connecting light materials where there is a risk of the back of the buckle breaking. With the help of an attachment for thin cardboard from a special accessory, this risk can be further reduced. The matrix has a total projection of 151 mm, which is sufficient for all ordinary work. The slender arm on which the matrix is attached enables work even in hard-to-reach places.
Examples of typical usage:
joining paper, cardboard, corrugated cardboard, foils, fabrics, leather…
SPECIFICATION:
Tool weight:
- Pneumatic – 29.3 kg
- Mechanical – 26.8 kg
Height: 1245 mm
Length: 830 mm
Width: 600 mm
Trigger type: Foot activation
Operating pressure: 5.5-6 bar (80 to 85 PSI)
Air inlet NPT: 3/8″
Capacity: 200 staples
