Description

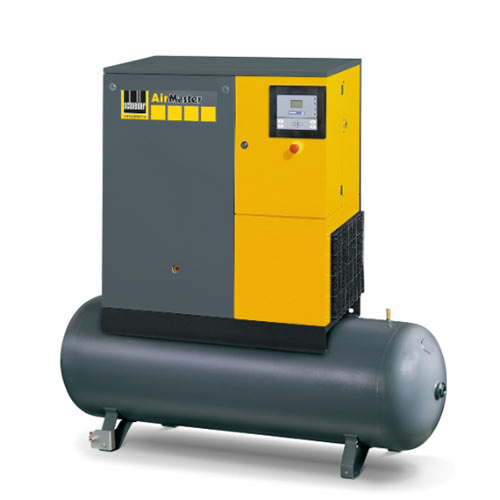

- Stationary screw compressor
- The device is ready for operation thanks to mounting on the air tank
- Easy handling and maximum user comfort thanks to easy-to-understand electronic controls
- Little space required for placement due to compact dimensions
- Time and cost savings in the case of maintenance ensured by the clear arrangement of all components
- Noisy thanks to the cabinet with noise insulation
- Easy installation of the used air channel thanks to the upward direction of the used air
- Prevention of serious damages during commissioning thanks to integrated control of the direction of rotation
- Robust screw compressors, V-belt drive, long service life of proven P compressor blocks
- AirSmart electronic control unit with important control and insurance functions P
- 15-year warranty on the air carrier against rusting
Parameters
Manufacturer Schneider
Type AMB 7-10-500 XBDK
Voltage 400 V
Noise 63 dB
Weight 431 kg
Manufacturer 500 l
Pressure 10 bar
Volume flow (l/min)2) 1080
Electric input 7,5 kW
Air outlet 3/4 "i
Dimensions (L x W x H) 1100 x 600 x 1570 mm
