Description
Modern solid wood processing technologies using the FLS 120 ECO (FLS 160 ECO) single-disc sweeping saw significantly increases yield, productivity and improves the quality of wood. Of course, great emphasis is placed on the quality of the cut and ease of use.
The highly versatile saw FLS 120 ECO (FLS 160 ECO) finds its application primarily in small and medium operations. The FLS 120 ECO (FLS 160 ECO) saw can be used to cut PRISMA, slats, prisms and large-area material. Input materials can be plastered, spread, formatted, blanks and slats can be produced. It is also possible to cut diagonally and miter.
The advantage of the machine is the high speed and accuracy of individual cuts and a high degree of flexibility in the input and output dimensions of the processed material . FLS 120 ECO (160 ECO) is appreciated in furniture workshops, in the production of semi-finished products for windows, doors and stairs.
The machine can also be used for dividing non-wood materials, e.g. PUR panels, sandwich panels, plastic boards, aluminum boards, etc.
It goes without saying that there are safety features that ensure the safety of work on sweeping saws. The machine meets the strict requirements for work safety resulting from the relevant EC regulations and directives.
Material processing options on the FLS 120 ECO (FLS 160 ECO) saw
Arrangement and principle of the saw

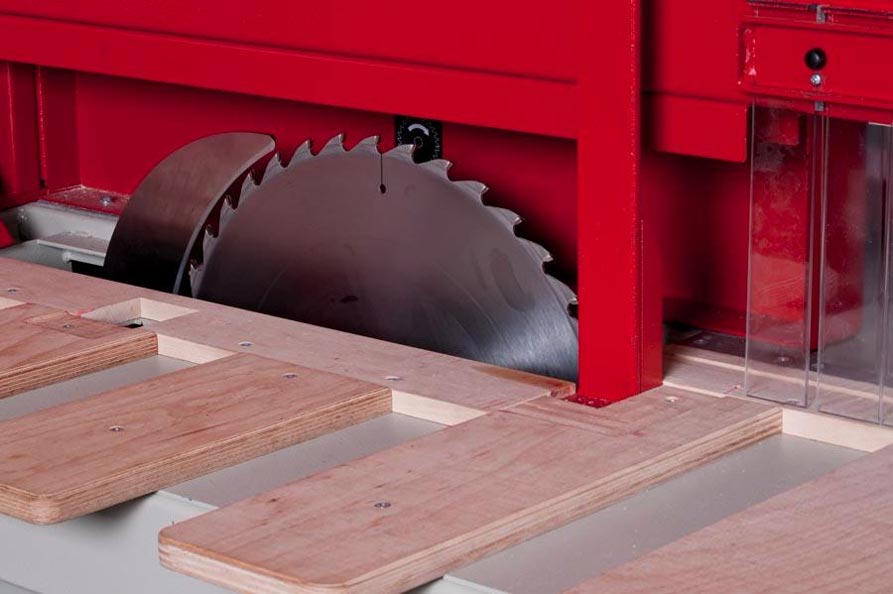

The cut material, freely placed on the work table, is longitudinally cut with a sliding saw blade. After the end of the cut, the saw blade is inserted under the work table of the saw and moves to the starting position. The rear longitudinal stop (ruler) moves the cut material to a new value of the width of the cut.
Advantages:
The rear stop of the machine enables simple and quick adjustment of the width of the cut. Values can be set using the joystick and digital display or using the quick dial buttons where up to 15 cutting width values can be set. These are the values between the rear stop and the saw blade, the so-called Absolute dimensions.
As an option, the machine can be retrofitted with the control of the following programs:
- Chain settings – automatic shift by the specified value (decrease from the total width of the cutting joint) </span >

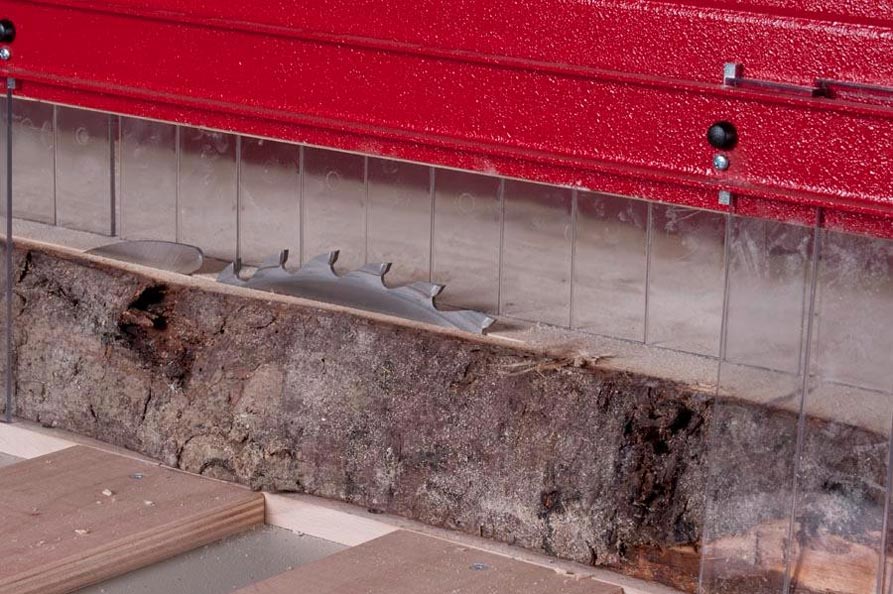

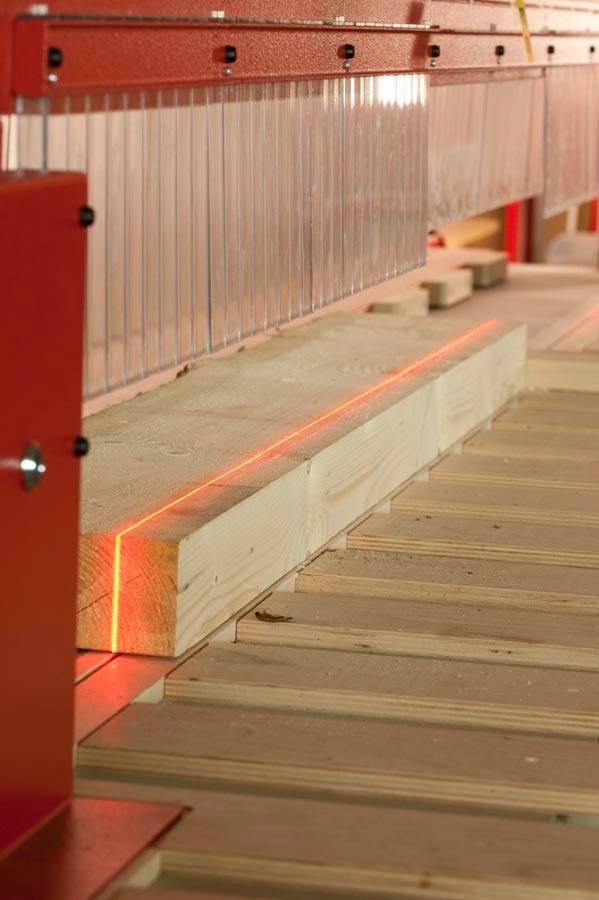

- Optimization system – automatic combination of widths in one material according to operator default values (width optimization for maximum yield ) Continuously adjustable disc feed at a speed of 0 – 60 m / min. guarantees high cutting performance. Continuous adjustment of feed speed using the controls on the machine panel. The adjustment of the stroke of the disc guarantees a clean cut and a high-quality cut surface. Changing the saw blade is easy and safe – quick-clamping of the saw blade. The saw is equipped with a laser, the beam of which marks the cutting path on the material and enables precise setting of the cut.

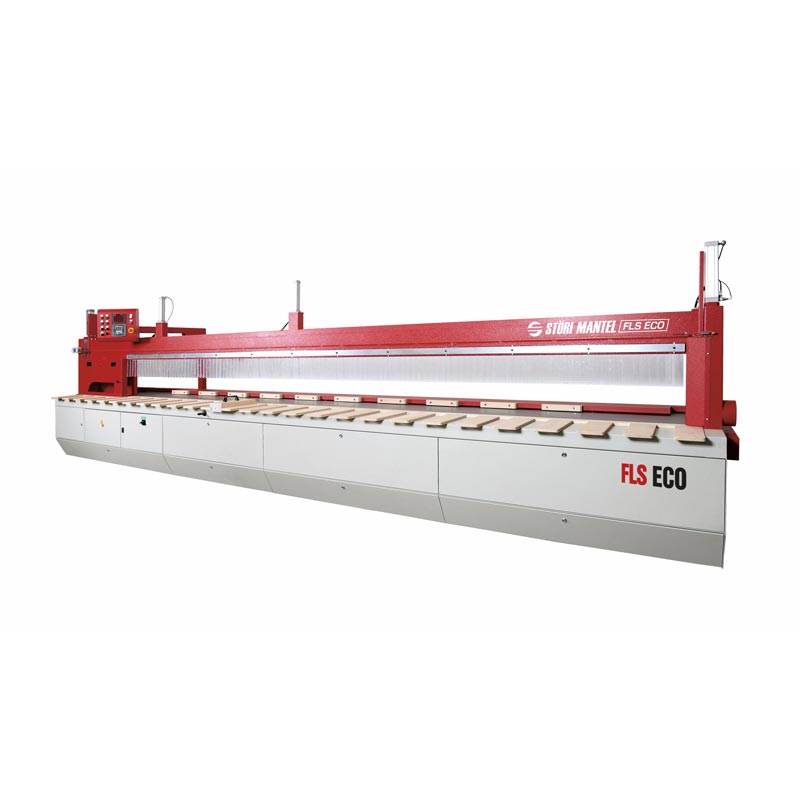

FLS 120 ECO (FLS 160 ECO) – represents durability and precision
The robust and rigid welded frame of the machine is made as a self-supporting steel structure with a central support and a large clearance height , together with the precise guidance of the saw aggregate is a guarantee of a long service life.
Possible expansion • pneumatic pressure 3000 mm • motor 15 kW • metal rollers • metal plate 6 pcs roller • trigger pedal in the length of the machine • cross table – basic measuring • cross table – additional • program expansion of the rear stop control chain optim, readout two-line display
Technical data of the FLS 120 ECO / FLS 160 ECO machine:
Motor 11 kW or 15 kW, 2900 rpm
Cutting height standard 0 – 120 mm (0 – 160 mm)
Saw blade Ø 450 to 550 mm.
Clamping diameter of disc Ø 80 mm
Feed to cut continuously controllable, 0 – 60 m / min
Standard cutting length 3.2 m – 6.2 m
Cutting width standard 420 mm (450 mm)
Working height 850 ± 50 mm
External dimensions length = cut length 1800 mm
Suction tunnel throat 160 mm
Exhaust duct throat 160 mm
Required extraction speed25 – 30 m / s
- Delivery time: 8-12 weeks from the order (depends on the final version of the machine)
- Payment terms: Deposit 30% of the value of the machine and 70% before delivery of the machine
- Email: info@profixrd .sk
