Description

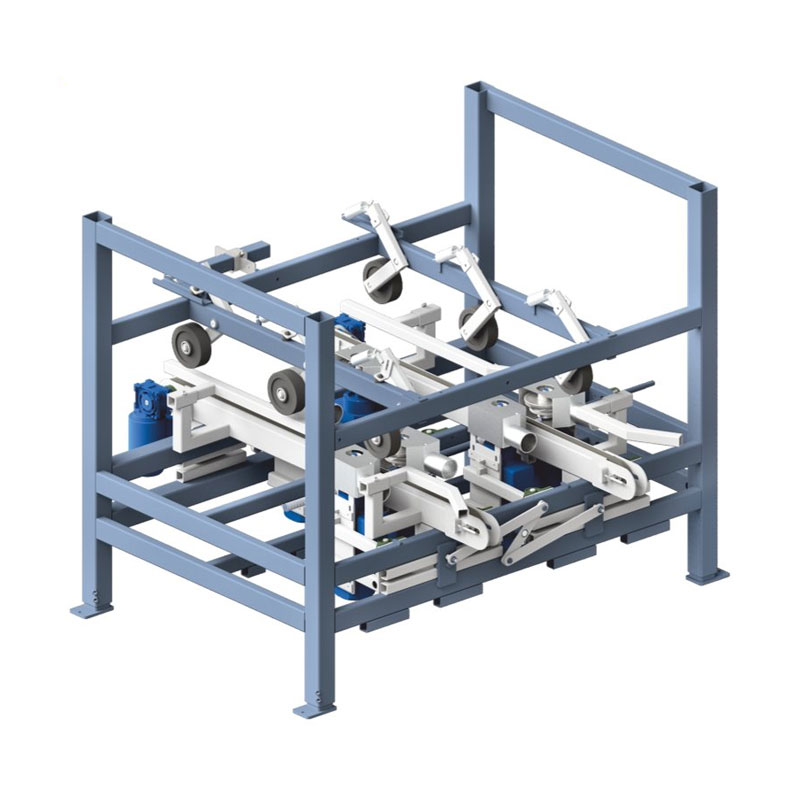

A milling machine is a machine designed for milling chamfering on the bottom plates of the pallets. The machine is used in pallet production lines. The operation of the machine is closely related to the precise arrangement of the pieces of wood we want to cut and coordinated movements to make the work of making a pallet much shorter and more efficient. The devices we offer are proven machines, without which it is difficult to imagine daily work on orders of a large number of wooden pallets. A pallet cutter is a modern machine that greatly facilitates work and is worth having in your operation.
The set includes:
- the main construction
- a set of milling motors
- chain conveyors
- pneumatic system
Technical parameters:
Machine length: 2,000 mm – Machine width: 2,050 mm – Machine height: 1,500 mm – Total weight machine: 550 kg – Conveyor motor power: 0.55 kW</span > – Milling motor power: 4×2.4 kW – Power supply: 3×400 [V] 50[Hz] – Air: 6 Bar – Air consumption: approx. 120L/min. – Power cable cross-section: 5×4[mm²] – Machine output: 5 pallets/min. – Payment: 50% upon order, 50% before delivery. – Delivery time: approx. 12 weeks from the order. – 12-month warranty from the day of taking over the machine. – We provide warranty and post-warranty service. – Cutters (tools) are not included in the price – The price does not include transport and installation of the machine
